Moza AB9 FFB Basis - 12 Nm - 110-220V AC - 216W - 1000Hz

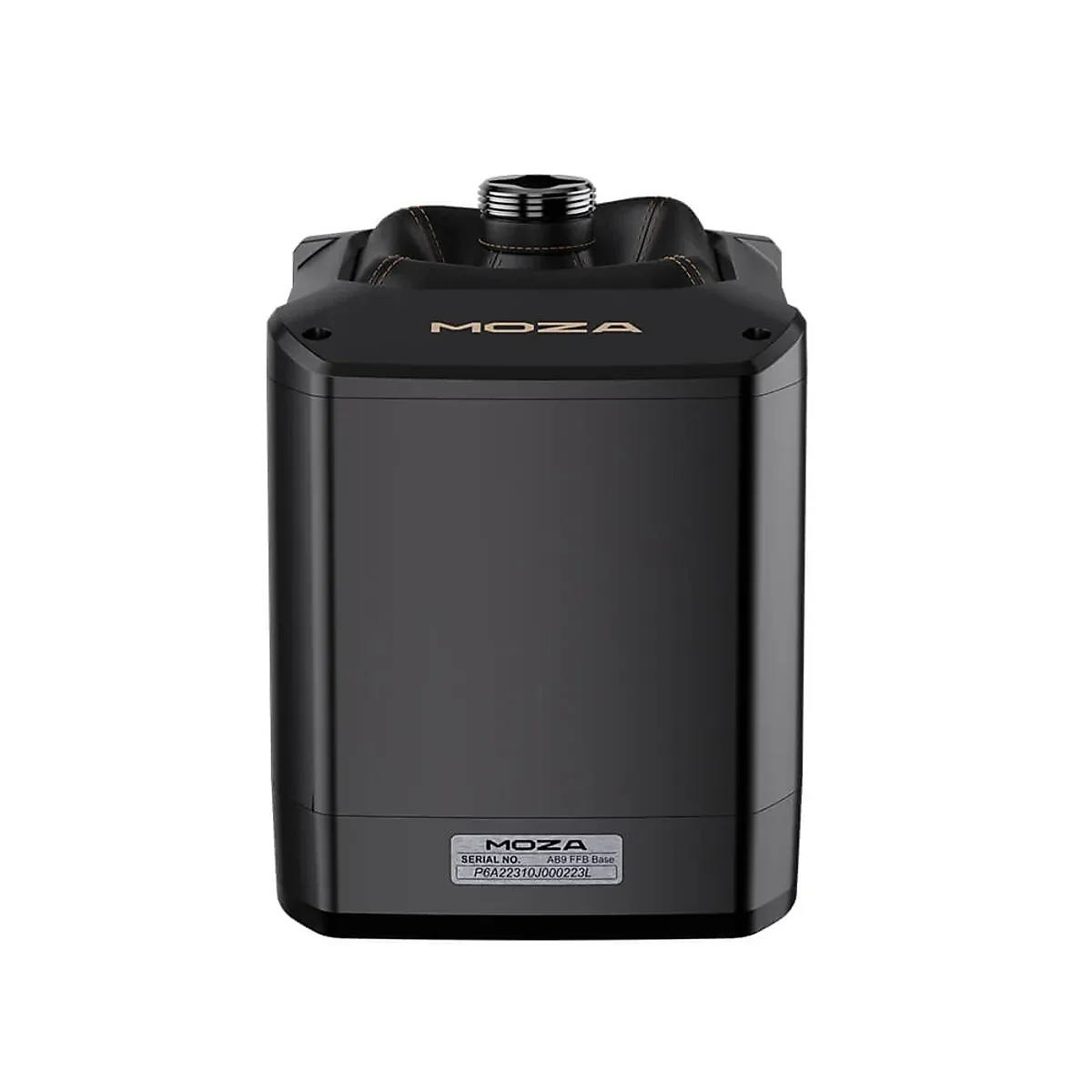

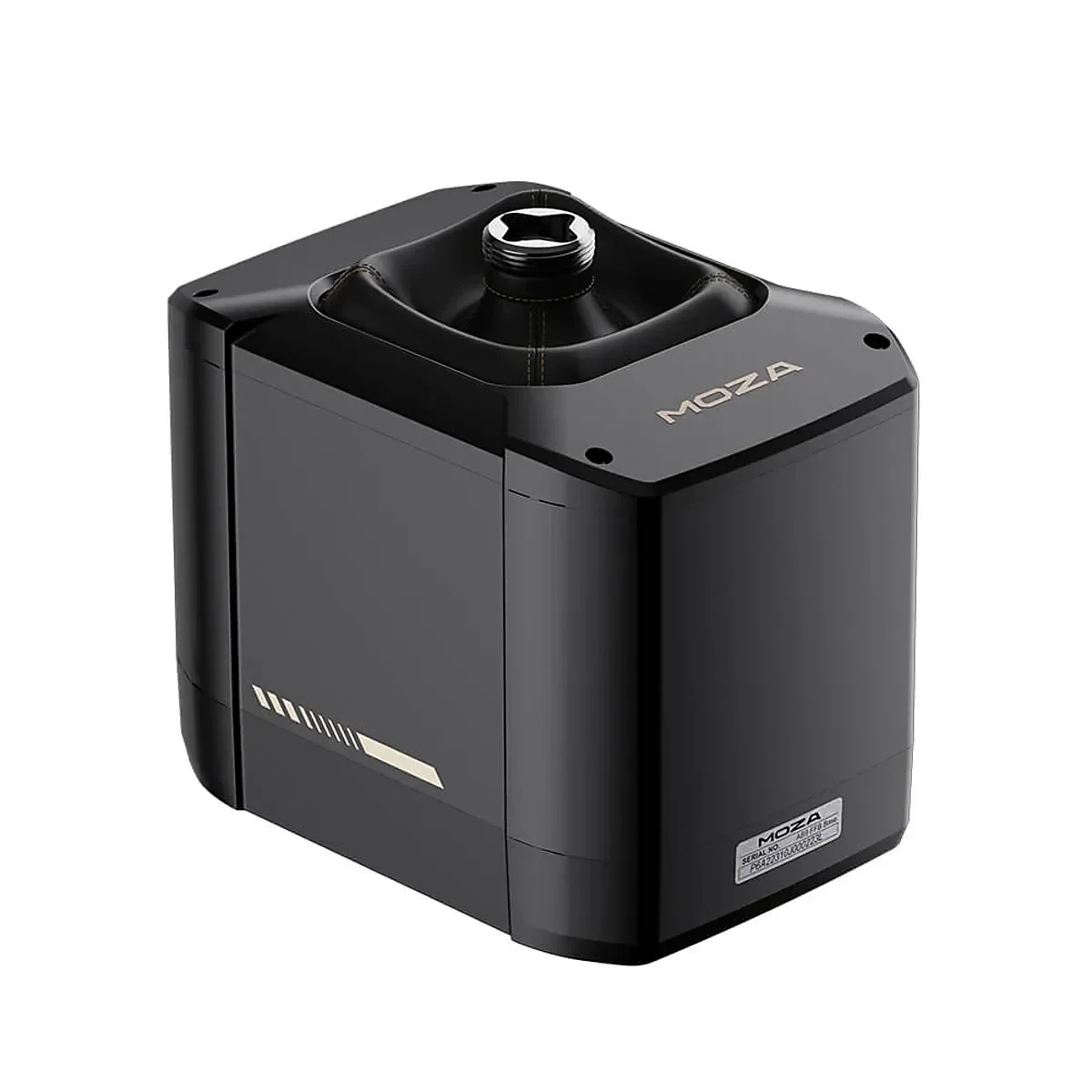

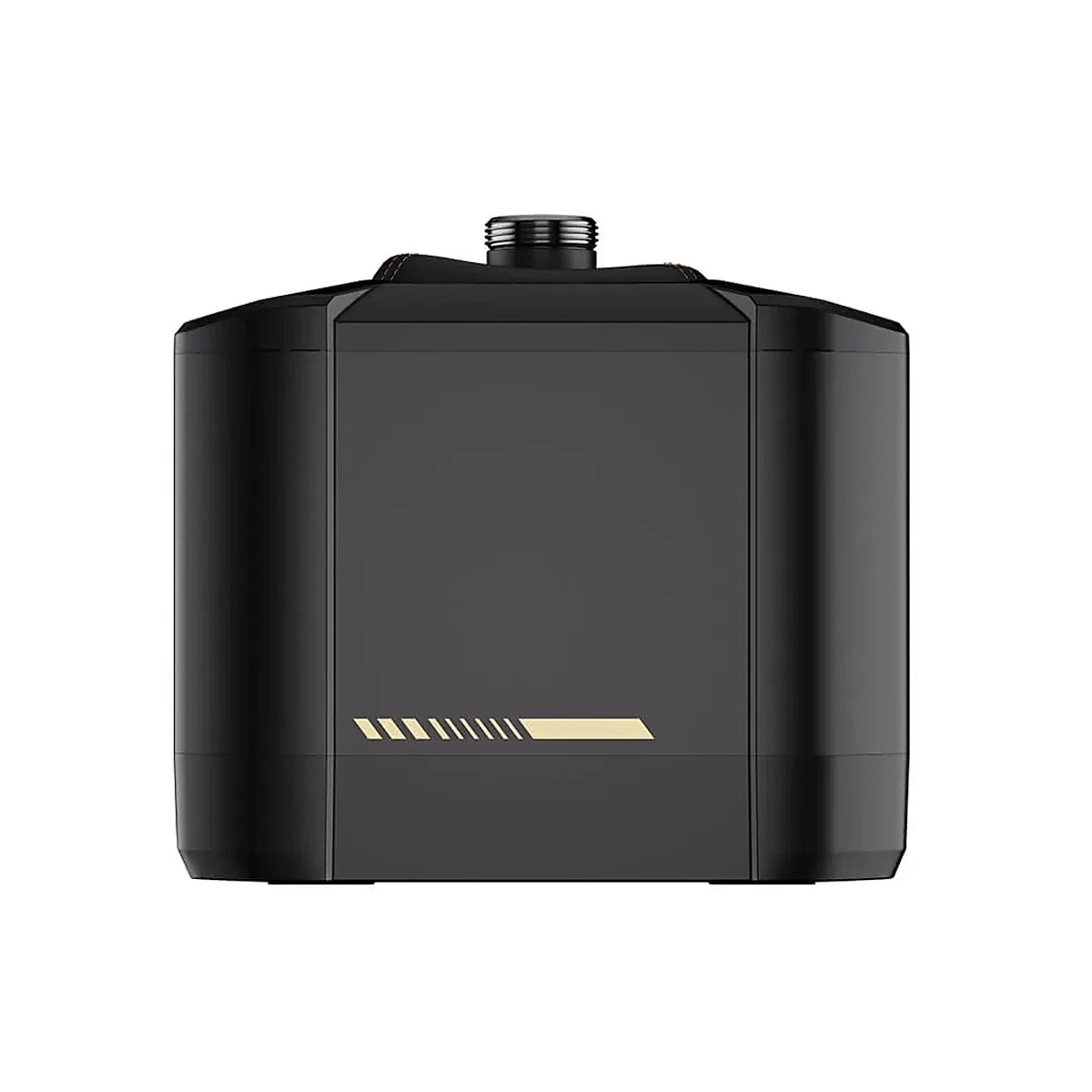

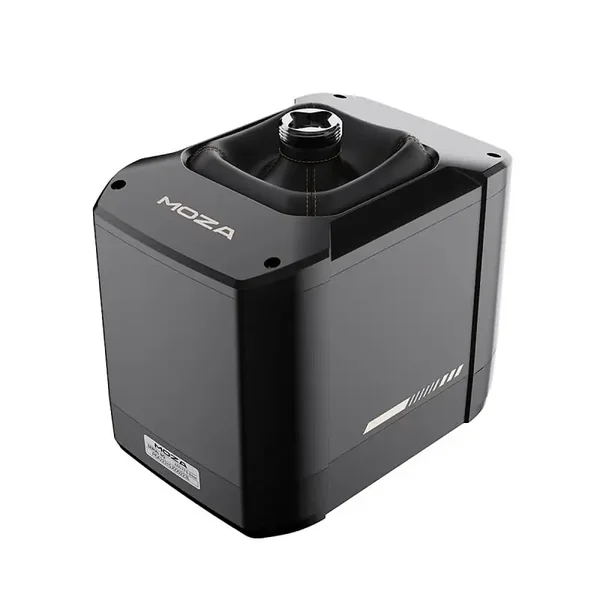

MOZA AB9 Force Feedback Base – 12 Nm

Experience flight simulation with powerful, detailed force feedback. The MOZA AB9 features dual servo motors delivering up to 12 Nm of peak torque, recreating dynamic feedback during taxiing, takeoff, landing, and turbulence.

Powered by the MOZA Control Loading System (MCLS), the AB9 delivers smooth, responsive feedback that brings your virtual aircraft to life. Its aviation-grade aluminium alloy housing provides a durable foundation, while the sealed, fanless design ensures quiet operation.

Customise your controls and force feedback settings through MOZA Cockpit software. With desktop and cockpit rig mounting options, the AB9 suits a wide range of simulator setups.

Technical Specifications

• Platform: PC
• Motor system: Dual servo motors
• Peak torque: 12 Nm
• Maximum travel angle: ±20°
• Housing: Aviation-grade aluminium alloy
• Power supply input: 110–220V AC
• Operating voltage: 36V DC
• Rated power: 216W
• Rated current: 6A
• USB refresh rate: 1000Hz
• Mounting: Desktop or cockpit rig
• Desktop clamp: Optional, sold separately

Please note: This product is the force feedback base only. A flightstick grip and optional mounting accessories are sold separately.
